Image captioning with visual attention

View on TensorFlow.org Run in Google Colab View on GitHub Download notebook

Given an image like the example below, your goal is to generate a caption such as "a surfer riding on a wave".

A man surfing, from wikimedia

The model architecture used here is inspired by Show, Attend and Tell: Neural Image Caption Generation with Visual Attention, but has been updated to use a 2-layer Transformer-decoder. To get the most out of this tutorial you should have some experience with text generation, seq2seq models & attention, or transformers.

The model architecture built in this tutorial is shown below. Features are extracted from the image, and passed to the cross-attention layers of the Transformer-decoder.

The model architecture

The transformer decoder is mainly built from attention layers. It uses self-attention to process the sequence being generated, and it uses cross-attention to attend to the image.

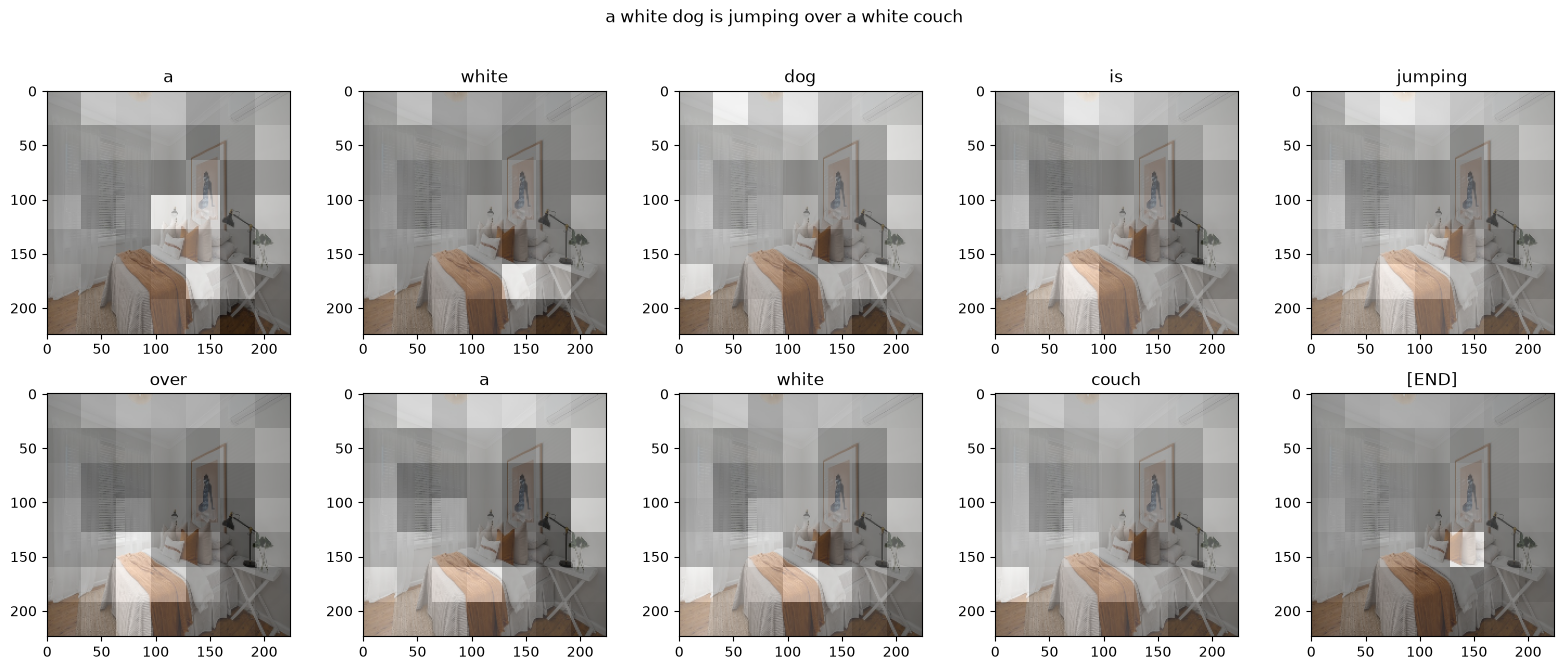

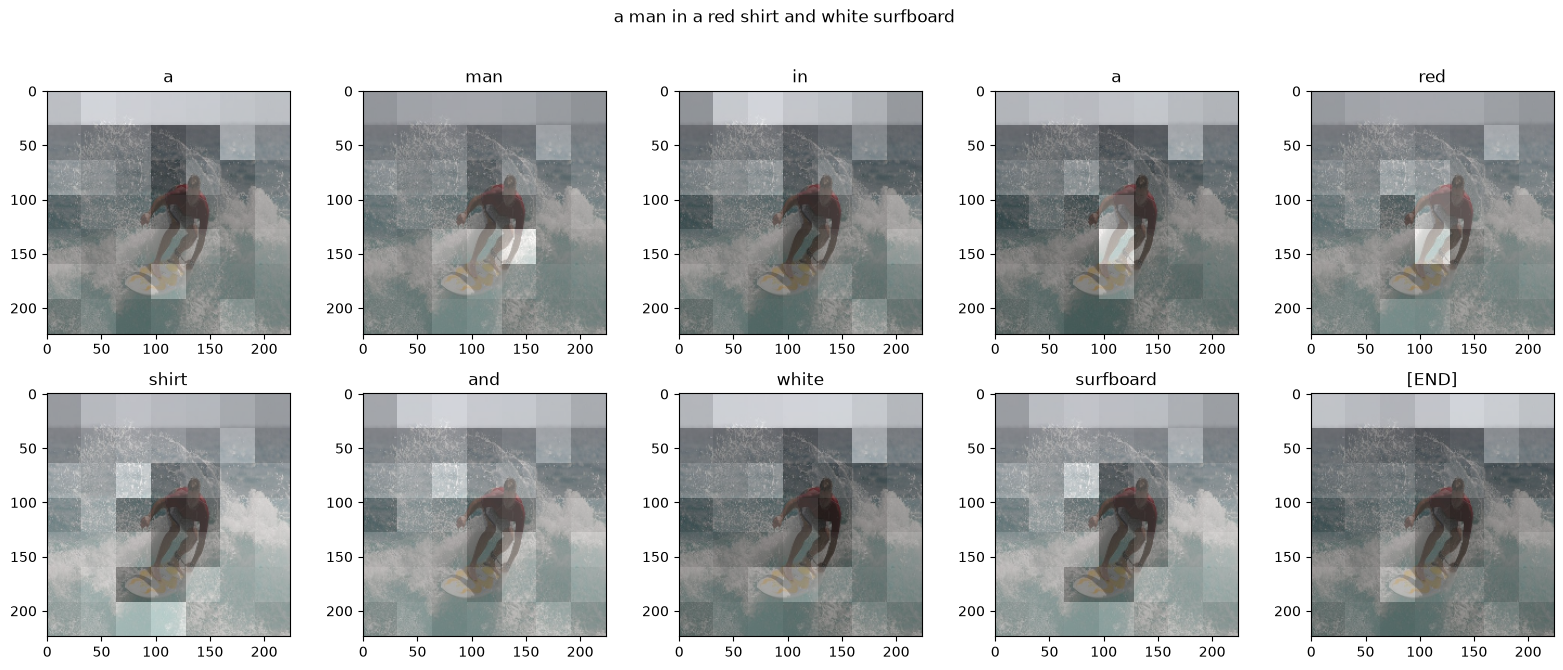

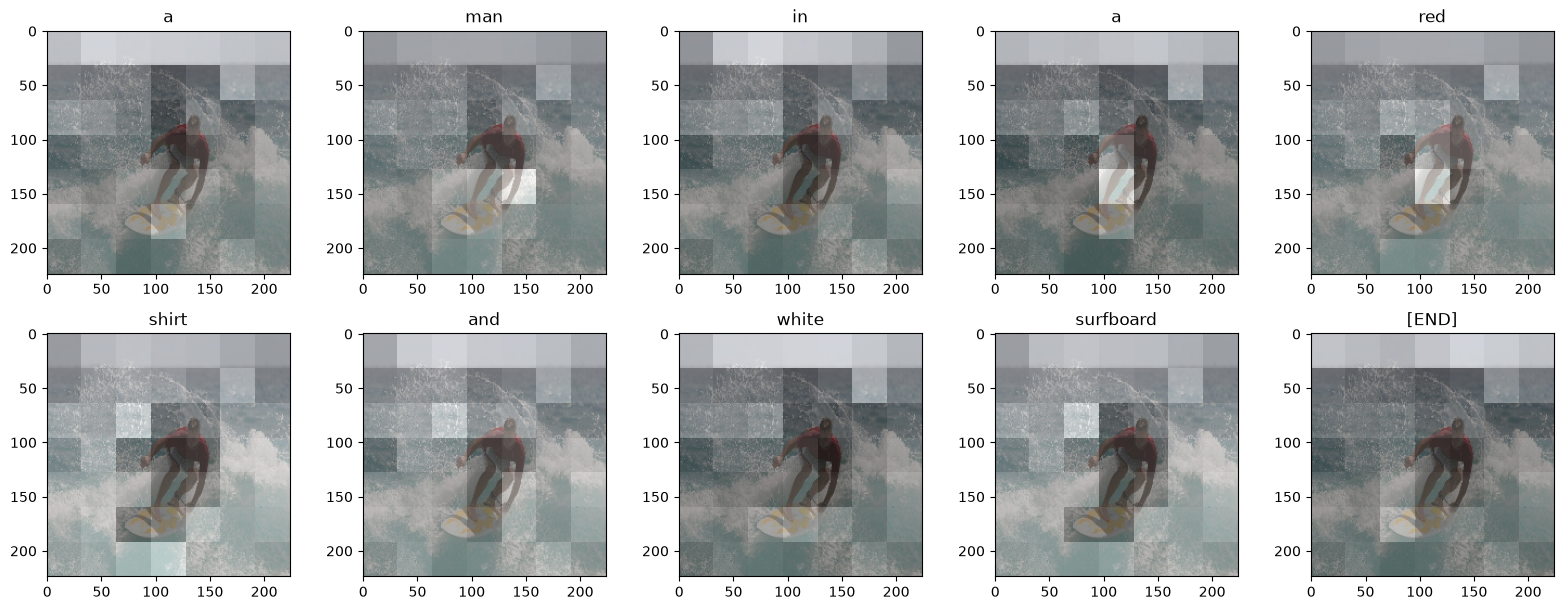

By inspecting the attention weights of the cross attention layers you will see what parts of the image the model is looking at as it generates words.

Prediction

This notebook is an end-to-end example. When you run the notebook, it downloads a dataset, extracts and caches the image features, and trains a decoder model. It then uses the model to generate captions on new images.

Setup

pip install -q -U tensorflow-text tensorflow_datasets tf-keras

pip install -q einops

This tutorial uses lots of imports, mostly for loading the dataset(s).

/tmpfs/src/tf_docs_env/lib/python3.11/site-packages/tensorflow_hub/__init__.py:61: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import parse_version

[Optional] Data handling

This section downloads a captions dataset and prepares it for training. It tokenizes the input text, and caches the results of running all the images through a pretrained feature-extractor model. It's not critical to understand everything in this section.

Data ready for training

After those preprocessing steps, here are the datasets:

train_ds = load_dataset('train_cache')
test_ds = load_dataset('test_cache')

train_ds.element_spec

((TensorSpec(shape=(None, 7, 7, 576), dtype=tf.float32, name=None),
  TensorSpec(shape=(None, None), dtype=tf.int64, name=None)),
 TensorSpec(shape=(None, None), dtype=tf.int64, name=None))

The dataset now returns (input, label) pairs suitable for training with keras. The inputs are (images, input_tokens) pairs. The images have been processed with the feature-extractor model. For each location in the input_tokens the model looks at the text so far and tries to predict the next which is lined up at the same location in the labels.

for (inputs, ex_labels) in train_ds.take(1):
  (ex_img, ex_in_tok) = inputs

print(ex_img.shape)
print(ex_in_tok.shape)
print(ex_labels.shape)

(32, 7, 7, 576)
(32, 20)
(32, 20)

The input tokens and the labels are the same, just shifted by 1 step:

print(ex_in_tok[0].numpy())
print(ex_labels[0].numpy())

[  3   2  12   8  61 115   2  51   0   0   0   0   0   0   0   0   0   0
   0   0]
[  2  12   8  61 115   2  51   4   0   0   0   0   0   0   0   0   0   0
   0   0]

A Transformer decoder model

This model assumes that the pretrained image encoder is sufficient, and just focuses on building the text decoder. This tutorial uses a 2-layer Transformer-decoder.

The implementations are almost identical to those in the Transformers tutorial. Refer back to it for more details.

The Transformer encoder and decoder.

The model will be implemented in three main parts:

  1. Input - The token embedding and positional encoding (SeqEmbedding).
  2. Decoder - A stack of transformer decoder layers (DecoderLayer) where each contains:
    1. A causal self attention later (CausalSelfAttention), where each output location can attend to the output so far.
    2. A cross attention layer (CrossAttention) where each output location can attend to the input image.
    3. A feed forward network (FeedForward) layer which further processes each output location independently.
  3. Output - A multiclass-classification over the output vocabulary.

Input

The input text has already been split up into tokens and converted to sequences of IDs.

Remember that unlike a CNN or RNN the Transformer's attention layers are invariant to the order of the sequence. Without some positional input, it just sees an unordered set not a sequence. So in addition to a simple vector embedding for each token ID, the embedding layer will also include an embedding for each position in the sequence.

The SeqEmbedding layer defined below:

  • It looks up the embedding vector for each token.
  • It looks up an embedding vector for each sequence location.
  • It adds the two together.
  • It uses mask_zero=True to initialize the keras-masks for the model.
class SeqEmbedding(tf.keras.layers.Layer):
  def __init__(self, vocab_size, max_length, depth):
    super().__init__()
    self.pos_embedding = tf.keras.layers.Embedding(input_dim=max_length, output_dim=depth)

    self.token_embedding = tf.keras.layers.Embedding(
        input_dim=vocab_size,
        output_dim=depth,
        mask_zero=True)

    self.add = tf.keras.layers.Add()

  def call(self, seq):
    seq = self.token_embedding(seq) # (batch, seq, depth)

    x = tf.range(tf.shape(seq)[1])  # (seq)
    x = x[tf.newaxis, :]  # (1, seq)
    x = self.pos_embedding(x)  # (1, seq, depth)

    return self.add([seq,x])

Decoder

The decoder is a standard Transformer-decoder, it contains a stack of DecoderLayers where each contains three sublayers: a CausalSelfAttention, a CrossAttention, and aFeedForward. The implementations are almost identical to the Transformer tutorial, refer to it for more details.

The CausalSelfAttention layer is below:

class CausalSelfAttention(tf.keras.layers.Layer):
  def __init__(self, **kwargs):
    super().__init__()
    self.mha = tf.keras.layers.MultiHeadAttention(**kwargs)
    # Use Add instead of + so the keras mask propagates through.
    self.add = tf.keras.layers.Add()
    self.layernorm = tf.keras.layers.LayerNormalization()

  def call(self, x):
    attn = self.mha(query=x, value=x,
                    use_causal_mask=True)
    x = self.add([x, attn])
    return self.layernorm(x)

The CrossAttention layer is below. Note the use of return_attention_scores.

class CrossAttention(tf.keras.layers.Layer):
  def __init__(self,**kwargs):
    super().__init__()
    self.mha = tf.keras.layers.MultiHeadAttention(**kwargs)
    self.add = tf.keras.layers.Add()
    self.layernorm = tf.keras.layers.LayerNormalization()

  def call(self, x, y, **kwargs):
    attn, attention_scores = self.mha(
             query=x, value=y,
             return_attention_scores=True)

    self.last_attention_scores = attention_scores

    x = self.add([x, attn])
    return self.layernorm(x)

The FeedForward layer is below. Remember that a layers.Dense layer is applied to the last axis of the input. The input will have a shape of (batch, sequence, channels), so it automatically applies pointwise across the batch and sequence axes.

class FeedForward(tf.keras.layers.Layer):
  def __init__(self, units, dropout_rate=0.1):
    super().__init__()
    self.seq = tf.keras.Sequential([
        tf.keras.layers.Dense(units=2*units, activation='relu'),
        tf.keras.layers.Dense(units=units),
        tf.keras.layers.Dropout(rate=dropout_rate),
    ])

    self.layernorm = tf.keras.layers.LayerNormalization()

  def call(self, x):
    x = x + self.seq(x)
    return self.layernorm(x)

Next arrange these three layers into a larger DecoderLayer. Each decoder layer applies the three smaller layers in sequence. After each sublayer the shape of out_seq is (batch, sequence, channels). The decoder layer also returns the attention_scores for later visualizations.

class DecoderLayer(tf.keras.layers.Layer):
  def __init__(self, units, num_heads=1, dropout_rate=0.1):
    super().__init__()

    self.self_attention = CausalSelfAttention(num_heads=num_heads,
                                              key_dim=units,
                                              dropout=dropout_rate)
    self.cross_attention = CrossAttention(num_heads=num_heads,
                                          key_dim=units,
                                          dropout=dropout_rate)
    self.ff = FeedForward(units=units, dropout_rate=dropout_rate)


  def call(self, inputs, training=False):
    in_seq, out_seq = inputs

    # Text input
    out_seq = self.self_attention(out_seq)

    out_seq = self.cross_attention(out_seq, in_seq)

    self.last_attention_scores = self.cross_attention.last_attention_scores

    out_seq = self.ff(out_seq)

    return out_seq

Output

At minimum the output layer needs a layers.Dense layer to generate logit-predictions for each token at each location.

But there are a few other features you can add to make this work a little better:

  1. Handle bad tokens: The model will be generating text. It should never generate a pad, unknown, or start token ('', '[UNK]', '[START]'). So set the bias for these to a large negative value.

  2. Smart initialization: The default initialization of a dense layer will give a model that initially predicts each token with almost uniform likelihood. The actual token distribution is far from uniform. The optimal value for the initial bias of the output layer is the log of the probability of each token. So include an adapt method to count the tokens and set the optimal initial bias. This reduces the initial loss from the entropy of the uniform distribution (log(vocabulary_size)) to the marginal entropy of the distribution (-p*log(p)).

The smart initialization will significantly reduce the initial loss:

output_layer = TokenOutput(tokenizer, banned_tokens=('', '[UNK]', '[START]'))
# This might run a little faster if the dataset didn't also have to load the image data.
output_layer.adapt(train_ds.map(lambda inputs, labels: labels))

0%|          | 0/938 [00:00<?, ?it/s]
0%|          | 1/938 [00:00<03:55,  3.98it/s]
3%|▎         | 24/938 [00:00<00:10, 85.29it/s]
5%|▌         | 50/938 [00:00<00:06, 143.53it/s]
8%|▊         | 79/938 [00:00<00:04, 190.65it/s]
11%|█▏        | 107/938 [00:00<00:03, 217.68it/s]
14%|█▍        | 135/938 [00:00<00:03, 236.47it/s]
17%|█▋        | 164/938 [00:00<00:03, 251.33it/s]
20%|██        | 191/938 [00:00<00:02, 255.00it/s]
23%|██▎       | 218/938 [00:01<00:02, 258.47it/s]
26%|██▌       | 246/938 [00:01<00:02, 264.73it/s]
29%|██▉       | 276/938 [00:01<00:02, 272.48it/s]
33%|███▎      | 306/938 [00:01<00:02, 278.07it/s]
36%|███▌      | 336/938 [00:01<00:02, 282.09it/s]
39%|███▉      | 365/938 [00:01<00:02, 282.12it/s]
42%|████▏     | 394/938 [00:01<00:01, 282.42it/s]
45%|████▌     | 423/938 [00:01<00:01, 279.95it/s]
48%|████▊     | 452/938 [00:01<00:01, 279.44it/s]
51%|█████▏    | 481/938 [00:01<00:01, 281.23it/s]
54%|█████▍    | 510/938 [00:02<00:01, 280.39it/s]
57%|█████▋    | 539/938 [00:02<00:01, 279.50it/s]
60%|██████    | 567/938 [00:02<00:01, 278.63it/s]
64%|██████▎   | 596/938 [00:02<00:01, 280.02it/s]
67%|██████▋   | 625/938 [00:02<00:01, 281.08it/s]
70%|██████▉   | 654/938 [00:02<00:01, 281.06it/s]
73%|███████▎  | 683/938 [00:02<00:00, 281.58it/s]
76%|███████▌  | 713/938 [00:02<00:00, 284.64it/s]
79%|███████▉  | 742/938 [00:02<00:00, 286.15it/s]
82%|████████▏ | 772/938 [00:03<00:00, 287.18it/s]
85%|████████▌ | 801/938 [00:03<00:00, 284.91it/s]
88%|████████▊ | 830/938 [00:03<00:00, 285.02it/s]
92%|█████████▏| 859/938 [00:03<00:00, 286.27it/s]
95%|█████████▍| 888/938 [00:03<00:00, 286.70it/s]
98%|█████████▊| 920/938 [00:03<00:00, 295.66it/s]
100%|██████████| 938/938 [00:03<00:00, 262.29it/s]
Uniform entropy: 8.52
Marginal entropy: 5.29

Build the model

To build the model, you need to combine several parts:

  1. The image feature_extractor and the text tokenizer and.
  2. The seq_embedding layer, to convert batches of token-IDs to vectors (batch, sequence, channels).
  3. The stack of DecoderLayers layers that will process the text and image data.
  4. The output_layer which returns a pointwise prediction of what the next word should be.
class Captioner(tf.keras.Model):
  @classmethod
  def add_method(cls, fun):
    setattr(cls, fun.__name__, fun)
    return fun

  def __init__(self, tokenizer, feature_extractor, output_layer, num_layers=1,
               units=256, max_length=50, num_heads=1, dropout_rate=0.1):
    super().__init__()
    self.feature_extractor = feature_extractor
    self.tokenizer = tokenizer
    self.word_to_index = tf.keras.layers.StringLookup(
        mask_token="",
        vocabulary=tokenizer.get_vocabulary())
    self.index_to_word = tf.keras.layers.StringLookup(
        mask_token="",
        vocabulary=tokenizer.get_vocabulary(),
        invert=True)

    self.seq_embedding = SeqEmbedding(
        vocab_size=tokenizer.vocabulary_size(),
        depth=units,
        max_length=max_length)

    self.decoder_layers = [
        DecoderLayer(units, num_heads=num_heads, dropout_rate=dropout_rate)
        for n in range(num_layers)]

    self.output_layer = output_layer

When you call the model, for training, it receives an image, txt pair. To make this function more usable, be flexible about the input:

  • If the image has 3 channels run it through the feature_extractor. Otherwise assume that it has been already. Similarly
  • If the text has dtype tf.string run it through the tokenizer.

After that running the model is only a few steps:

  1. Flatten the extracted image features, so they can be input to the decoder layers.
  2. Look up the token embeddings.
  3. Run the stack of DecoderLayers, on the image features and text embeddings.
  4. Run the output layer to predict the next token at each position.
@Captioner.add_method
  def call(self, inputs):
    image, txt = inputs

    if image.shape[-1] == 3:
      # Apply the feature-extractor, if you get an RGB image.
      image = self.feature_extractor(image)

    # Flatten the feature map
    image = einops.rearrange(image, 'b h w c -> b (h w) c')


    if txt.dtype == tf.string:
      # Apply the tokenizer if you get string inputs.
      txt = tokenizer(txt)

    txt = self.seq_embedding(txt)

    # Look at the image
    for dec_layer in self.decoder_layers:
      txt = dec_layer(inputs=(image, txt))

    txt = self.output_layer(txt)

    return txt

model = Captioner(tokenizer, feature_extractor=mobilenet, output_layer=output_layer,
                  units=256, dropout_rate=0.5, num_layers=2, num_heads=2)

Generate captions

Before getting into training, write a bit of code to generate captions. You'll use this to see how training is progressing.

Start by downloading a test image:

image_url = 'https://tensorflow.org/images/surf.jpg'
image_path = tf.keras.utils.get_file('surf.jpg', origin=image_url)
image = load_image(image_path)

Downloading data from https://tensorflow.org/images/surf.jpg
64400/64400 [==============================] - 0s 0us/step

To caption an image with this model:

  • Extract the img_features
  • Initialize the list of output tokens with a [START] token.
  • Pass img_features and tokens into the model.
    • It returns a list of logits.
    • Choose the next token based on those logits.
    • Add it to the list of tokens, and continue the loop.
    • If it generates an '[END]' token, break out of the loop.

So add a "simple" method to do just that:

@Captioner.add_method
def simple_gen(self, image, temperature=1):
  initial = self.word_to_index([['[START]']]) # (batch, sequence)
  img_features = self.feature_extractor(image[tf.newaxis, ...])

  tokens = initial # (batch, sequence)
  for n in range(50):
    preds = self((img_features, tokens)).numpy()  # (batch, sequence, vocab)
    preds = preds[:,-1, :]  #(batch, vocab)
    if temperature==0:
        next = tf.argmax(preds, axis=-1)[:, tf.newaxis]  # (batch, 1)
    else:
        next = tf.random.categorical(preds/temperature, num_samples=1)  # (batch, 1)
    tokens = tf.concat([tokens, next], axis=1) # (batch, sequence)

    if next[0] == self.word_to_index('[END]'):
      break
  words = index_to_word(tokens[0, 1:-1])
  result = tf.strings.reduce_join(words, axis=-1, separator=' ')
  return result.numpy().decode()

Here are some generated captions for that image, the model's untrained, so they don't make much sense yet:

for t in (0.0, 0.5, 1.0):
  result = model.simple_gen(image, temperature=t)
  print(result)

a
and is its the a a

The temperature parameter allows you to interpolate between 3 modes:

  1. Greedy decoding (temperature=0.0) - Chooses the most likely next token at each step.
  2. Random sampling according to the logits (temperature=1.0).
  3. Uniform random sampling (temperature >> 1.0).

Since the model is untrained, and it used the frequency-based initialization, the "greedy" output (first) usually only contains the most common tokens: ['a', '.', '[END]'].

Train

To train the model you'll need several additional components:

  • The Loss and metrics
  • The Optimizer
  • Optional Callbacks

Losses and metrics

Here's an implementation of a masked loss and accuracy:

When calculating the mask for the loss, note the loss < 1e8. This term discards the artificial, impossibly high losses for the banned_tokens.

def masked_loss(labels, preds):
  loss = tf.nn.sparse_softmax_cross_entropy_with_logits(labels, preds)

  mask = (labels != 0) & (loss < 1e8)
  mask = tf.cast(mask, loss.dtype)

  loss = loss*mask
  loss = tf.reduce_sum(loss)/tf.reduce_sum(mask)
  return loss

def masked_acc(labels, preds):
  mask = tf.cast(labels!=0, tf.float32)
  preds = tf.argmax(preds, axis=-1)
  labels = tf.cast(labels, tf.int64)
  match = tf.cast(preds == labels, mask.dtype)
  acc = tf.reduce_sum(match*mask)/tf.reduce_sum(mask)
  return acc

Callbacks

For feedback during training setup a keras.callbacks.Callback to generate some captions for the surfer image at the end of each epoch.

class GenerateText(tf.keras.callbacks.Callback):
  def __init__(self):
    image_url = 'https://tensorflow.org/images/surf.jpg'
    image_path = tf.keras.utils.get_file('surf.jpg', origin=image_url)
    self.image = load_image(image_path)

  def on_epoch_end(self, epochs=None, logs=None):
    print()
    print()
    for t in (0.0, 0.5, 1.0):
      result = self.model.simple_gen(self.image, temperature=t)
      print(result)
    print()

It generates three output strings, like the earlier example, like before the first is "greedy", choosing the argmax of the logits at each step.

g = GenerateText()
g.model = model
g.on_epoch_end(0)


a
the

Also use callbacks.EarlyStopping to terminate training when the model starts to overfit.

callbacks = [
    GenerateText(),
    tf.keras.callbacks.EarlyStopping(
        patience=5, restore_best_weights=True)]

Train

Configure and execute the training.

model.compile(optimizer=tf.keras.optimizers.Adam(learning_rate=1e-4),
           loss=masked_loss,
           metrics=[masked_acc])

For more frequent reporting, use the Dataset.repeat() method, and set the steps_per_epoch and validation_steps arguments to Model.fit.

With this setup on Flickr8k a full pass over the dataset is 900+ batches, but below the reporting-epochs are 100 steps.

history = model.fit(
    train_ds.repeat(),
    steps_per_epoch=100,
    validation_data=test_ds.repeat(),
    validation_steps=20,
    epochs=100,
    callbacks=callbacks)

Epoch 1/100
100/100 [==============================] - ETA: 0s - loss: 5.0222 - masked_acc: 0.1974

a man in a man in a man in a
a person in a are red of a yellow
the lay white walks boy and a trick
100/100 [==============================] - 25s 134ms/step - loss: 5.0222 - masked_acc: 0.1974 - val_loss: 4.6717 - val_masked_acc: 0.2347
Epoch 2/100
100/100 [==============================] - ETA: 0s - loss: 4.6489 - masked_acc: 0.2497

a man in a red in the water
a dog is in the is and water
a dog in the cross a life in a dog


100/100 [==============================] - 7s 72ms/step - loss: 4.6489 - masked_acc: 0.2497 - val_loss: 4.3606 - val_masked_acc: 0.2684
Epoch 3/100
100/100 [==============================] - ETA: 0s - loss: 4.4377 - masked_acc: 0.2770

a man in a red in the water
a man wearing a white dog with a jump of a another
a man in a slide


100/100 [==============================] - 6s 63ms/step - loss: 4.4377 - masked_acc: 0.2770 - val_loss: 4.1899 - val_masked_acc: 0.2960
Epoch 4/100
99/100 [============================>.] - ETA: 0s - loss: 4.2674 - masked_acc: 0.2927

a man in a red shirt is running in the water
a man in a red and red in the water
a fluffy bike up through to two


100/100 [==============================] - 7s 67ms/step - loss: 4.2643 - masked_acc: 0.2927 - val_loss: 4.0660 - val_masked_acc: 0.3007
Epoch 5/100
98/100 [============================>.] - ETA: 0s - loss: 4.1338 - masked_acc: 0.3060

a man in a red shirt is running in the water
a man is in the water
a boy wearing a yellow one is pulling with a green dog


100/100 [==============================] - 6s 60ms/step - loss: 4.1346 - masked_acc: 0.3061 - val_loss: 3.9963 - val_masked_acc: 0.3104
Epoch 6/100
100/100 [==============================] - ETA: 0s - loss: 4.0014 - masked_acc: 0.3210

a man in a red shirt is running in the water
a young boy in the water
a woman running on the edge of a guys


100/100 [==============================] - 6s 60ms/step - loss: 4.0014 - masked_acc: 0.3210 - val_loss: 3.8831 - val_masked_acc: 0.3261
Epoch 7/100
100/100 [==============================] - ETA: 0s - loss: 3.9546 - masked_acc: 0.3261

a man in a red shirt is running in the water
a woman in the water
a little boy is walking away from a road


100/100 [==============================] - 5s 54ms/step - loss: 3.9546 - masked_acc: 0.3261 - val_loss: 3.8884 - val_masked_acc: 0.3172
Epoch 8/100
100/100 [==============================] - ETA: 0s - loss: 3.8584 - masked_acc: 0.3323

a man in a red shirt is running in the water
a girl in a red shirt and white water
a person in his water


100/100 [==============================] - 6s 59ms/step - loss: 3.8584 - masked_acc: 0.3323 - val_loss: 3.7154 - val_masked_acc: 0.3220
Epoch 9/100
98/100 [============================>.] - ETA: 0s - loss: 3.7739 - masked_acc: 0.3384

a man in a red shirt is running through the water
a man is through a a water
a blonde small helmet on a store by


100/100 [==============================] - 6s 57ms/step - loss: 3.7777 - masked_acc: 0.3381 - val_loss: 3.6358 - val_masked_acc: 0.3454
Epoch 10/100
99/100 [============================>.] - ETA: 0s - loss: 3.6992 - masked_acc: 0.3439

a man in a blue shirt is riding a pool
a man in a blue jacket is riding a pool
a black walking along a into a pool at the legs


100/100 [==============================] - 6s 63ms/step - loss: 3.7007 - masked_acc: 0.3435 - val_loss: 3.5897 - val_masked_acc: 0.3457
Epoch 11/100
100/100 [==============================] - ETA: 0s - loss: 3.6470 - masked_acc: 0.3476

a man in a blue shirt is jumping in the water
a man wearing a blue jacket is playing in a white water
a person wearing another girl is wearing a bald couple a trunks


100/100 [==============================] - 6s 64ms/step - loss: 3.6470 - masked_acc: 0.3476 - val_loss: 3.5362 - val_masked_acc: 0.3482
Epoch 12/100
99/100 [============================>.] - ETA: 0s - loss: 3.5879 - masked_acc: 0.3524

a man in a blue shirt is jumping in the water
a young boy in the water
the child sitting in the pool


100/100 [==============================] - 5s 53ms/step - loss: 3.5879 - masked_acc: 0.3523 - val_loss: 3.5167 - val_masked_acc: 0.3579
Epoch 13/100
100/100 [==============================] - ETA: 0s - loss: 3.5963 - masked_acc: 0.3492

a man in a red shirt is riding a pool
a man with a red jacket has a pool
a child orange dog is in a pool


100/100 [==============================] - 6s 57ms/step - loss: 3.5963 - masked_acc: 0.3492 - val_loss: 3.4156 - val_masked_acc: 0.3587
Epoch 14/100
99/100 [============================>.] - ETA: 0s - loss: 3.5090 - masked_acc: 0.3545

a man in a blue shirt is jumping into the water
a man is jumping over the water
a person on the ocean is riding onlookers in the


100/100 [==============================] - 6s 59ms/step - loss: 3.5128 - masked_acc: 0.3541 - val_loss: 3.4031 - val_masked_acc: 0.3545
Epoch 15/100
98/100 [============================>.] - ETA: 0s - loss: 3.5136 - masked_acc: 0.3590

a man in a red shirt is riding a wave
a man wearing a red shirt is riding a wave
two people are in the water


100/100 [==============================] - 5s 55ms/step - loss: 3.5129 - masked_acc: 0.3592 - val_loss: 3.3937 - val_masked_acc: 0.3527
Epoch 16/100
100/100 [==============================] - ETA: 0s - loss: 3.4694 - masked_acc: 0.3599

a man in a red shirt is swimming pool
a man is riding a wave in the water
a boy is wearing a catcher pool


100/100 [==============================] - 6s 55ms/step - loss: 3.4694 - masked_acc: 0.3599 - val_loss: 3.3784 - val_masked_acc: 0.3603
Epoch 17/100
98/100 [============================>.] - ETA: 0s - loss: 3.4615 - masked_acc: 0.3604

a man in a red shirt is riding a wave
a man in a blue shirt is riding a wave
two girls in a bikini runs into a pool


100/100 [==============================] - 6s 58ms/step - loss: 3.4591 - masked_acc: 0.3601 - val_loss: 3.3278 - val_masked_acc: 0.3673
Epoch 18/100
99/100 [============================>.] - ETA: 0s - loss: 3.4235 - masked_acc: 0.3606

a man in a red shirt is riding a wave
a person in a red shirt is jumping into a pool
a boy wearing a yellow helmet wearing sunglasses


100/100 [==============================] - 6s 58ms/step - loss: 3.4214 - masked_acc: 0.3607 - val_loss: 3.2755 - val_masked_acc: 0.3629
Epoch 19/100
98/100 [============================>.] - ETA: 0s - loss: 3.3608 - masked_acc: 0.3670

a man in a blue shirt is swimming pool
a man is riding a large wave
a biker child wearing catch a wetsuit is looking at a pool


100/100 [==============================] - 6s 57ms/step - loss: 3.3605 - masked_acc: 0.3674 - val_loss: 3.3160 - val_masked_acc: 0.3630
Epoch 20/100
100/100 [==============================] - ETA: 0s - loss: 3.2835 - masked_acc: 0.3748

a man in a blue shirt is swimming in the water
a man is in a pool
a man and a dog skiing down over a scenery


100/100 [==============================] - 5s 54ms/step - loss: 3.2835 - masked_acc: 0.3748 - val_loss: 3.3300 - val_masked_acc: 0.3602
Epoch 21/100
99/100 [============================>.] - ETA: 0s - loss: 3.2688 - masked_acc: 0.3751

a man in a blue shirt is swimming pool
a man in a red shirt and blue pool
two people are like waves


100/100 [==============================] - 5s 53ms/step - loss: 3.2703 - masked_acc: 0.3750 - val_loss: 3.1825 - val_masked_acc: 0.3714
Epoch 22/100
99/100 [============================>.] - ETA: 0s - loss: 3.2350 - masked_acc: 0.3774

a man in a blue shirt is riding a wave
a surfer in a blue pool
a man and white girl jumping into a blue tennis toy his while a steep yellow trunks toy water


100/100 [==============================] - 6s 63ms/step - loss: 3.2361 - masked_acc: 0.3773 - val_loss: 3.1756 - val_masked_acc: 0.3806
Epoch 23/100
100/100 [==============================] - ETA: 0s - loss: 3.2588 - masked_acc: 0.3743

a man in a yellow shirt is riding a wave
a man in a blue wetsuit is doing a surfboard
a man and a jeans running for the wave


100/100 [==============================] - 6s 59ms/step - loss: 3.2588 - masked_acc: 0.3743 - val_loss: 3.1521 - val_masked_acc: 0.3734
Epoch 24/100
100/100 [==============================] - ETA: 0s - loss: 3.2335 - masked_acc: 0.3776

a man in a red shirt is swimming pool
a man in a red kayak is running in the ocean
man in white shorts catching an flip in a leash


100/100 [==============================] - 6s 58ms/step - loss: 3.2335 - masked_acc: 0.3776 - val_loss: 3.1751 - val_masked_acc: 0.3693
Epoch 25/100
98/100 [============================>.] - ETA: 0s - loss: 3.2204 - masked_acc: 0.3793

a man in a blue shirt is riding a wave
a man in a blue shirt is jumping up a wave
orange player in midair slides up on a pool


100/100 [==============================] - 6s 57ms/step - loss: 3.2215 - masked_acc: 0.3792 - val_loss: 3.2460 - val_masked_acc: 0.3682
Epoch 26/100
99/100 [============================>.] - ETA: 0s - loss: 3.1644 - masked_acc: 0.3815

a man in a blue shirt is riding a wave
a person is riding a wave
a child kayaking on a blue kayak wearing a black sweater is


100/100 [==============================] - 6s 57ms/step - loss: 3.1645 - masked_acc: 0.3814 - val_loss: 3.0814 - val_masked_acc: 0.3831
Epoch 27/100
100/100 [==============================] - ETA: 0s - loss: 3.1620 - masked_acc: 0.3826

a man in a red shirt is riding a wave
a man in a red shirt and a blue surfboard
a surfboard kicking a surfboard under a surfboard


100/100 [==============================] - 6s 56ms/step - loss: 3.1620 - masked_acc: 0.3826 - val_loss: 3.1092 - val_masked_acc: 0.3809
Epoch 28/100
99/100 [============================>.] - ETA: 0s - loss: 3.1255 - masked_acc: 0.3871

a man in a blue wetsuit is riding a wave
a man in a wetsuit is riding a wave
a surfer he on a wetsuit flies down


100/100 [==============================] - 6s 57ms/step - loss: 3.1237 - masked_acc: 0.3870 - val_loss: 3.1443 - val_masked_acc: 0.3739
Epoch 29/100
99/100 [============================>.] - ETA: 0s - loss: 3.0711 - masked_acc: 0.3899

a man in a yellow shirt is riding a wave
a person is surfing a wave
a person airborne on a beach


100/100 [==============================] - 5s 53ms/step - loss: 3.0718 - masked_acc: 0.3897 - val_loss: 3.1240 - val_masked_acc: 0.3840
Epoch 30/100
98/100 [============================>.] - ETA: 0s - loss: 3.0812 - masked_acc: 0.3911

a man in a yellow shirt is riding a wave
a man is riding a surfboard
an


100/100 [==============================] - 5s 50ms/step - loss: 3.0776 - masked_acc: 0.3915 - val_loss: 3.0589 - val_masked_acc: 0.3854
Epoch 31/100
99/100 [============================>.] - ETA: 0s - loss: 3.0443 - masked_acc: 0.3926

a surfer in a red shirt is riding a wave
a surfer in a wetsuit is surfing in the ocean
a man wearing red gear at a stick


100/100 [==============================] - 6s 59ms/step - loss: 3.0442 - masked_acc: 0.3925 - val_loss: 3.0509 - val_masked_acc: 0.3860
Epoch 32/100
98/100 [============================>.] - ETA: 0s - loss: 3.0160 - masked_acc: 0.3933

a man in a yellow kayak is in the ocean
a person in a yellow shirt is surfing in a pool
a man waterskiing


100/100 [==============================] - 5s 54ms/step - loss: 3.0184 - masked_acc: 0.3933 - val_loss: 3.0532 - val_masked_acc: 0.3897
Epoch 33/100
98/100 [============================>.] - ETA: 0s - loss: 3.0178 - masked_acc: 0.3953

a surfer in a red shirt is riding a wave
a surfer in a red and white surfer in a yellow wave
a person riding down a wave in a kayak


100/100 [==============================] - 6s 60ms/step - loss: 3.0153 - masked_acc: 0.3955 - val_loss: 2.9970 - val_masked_acc: 0.3928
Epoch 34/100
98/100 [============================>.] - ETA: 0s - loss: 3.0296 - masked_acc: 0.3937

a surfer in a wetsuit is riding a wave
a girl in a blue wetsuit on a surfboard
an on a large wave leaning on orange surfboard


100/100 [==============================] - 6s 56ms/step - loss: 3.0279 - masked_acc: 0.3940 - val_loss: 2.9971 - val_masked_acc: 0.3900
Epoch 35/100
98/100 [============================>.] - ETA: 0s - loss: 2.9867 - masked_acc: 0.3967

a man in a red shirt is riding a wave
a surfer rides a wave
a surfer wearing a sled is flying through the ocean


100/100 [==============================] - 6s 56ms/step - loss: 2.9850 - masked_acc: 0.3971 - val_loss: 3.0230 - val_masked_acc: 0.3842
Epoch 36/100
99/100 [============================>.] - ETA: 0s - loss: 2.9881 - masked_acc: 0.3948

a man in a red shirt is riding a wave
a person in a red vest and white surfboard sliding down a wave
a person in a bikini wetsuit gear is sitting in the ocean


100/100 [==============================] - 6s 62ms/step - loss: 2.9900 - masked_acc: 0.3945 - val_loss: 3.0418 - val_masked_acc: 0.3872
Epoch 37/100
99/100 [============================>.] - ETA: 0s - loss: 2.9784 - masked_acc: 0.3989

a man in a blue wetsuit is riding a wave
a man in a blue wetsuit is surfing
two men are racing goggles around a wave


100/100 [==============================] - 6s 59ms/step - loss: 2.9797 - masked_acc: 0.3987 - val_loss: 2.9875 - val_masked_acc: 0.3866
Epoch 38/100
100/100 [==============================] - ETA: 0s - loss: 2.9236 - masked_acc: 0.4020

a man in a yellow shirt is surfing
a man in a wetsuit is riding a wave
little child in water


100/100 [==============================] - 5s 53ms/step - loss: 2.9236 - masked_acc: 0.4020 - val_loss: 3.0202 - val_masked_acc: 0.3924
Epoch 39/100
99/100 [============================>.] - ETA: 0s - loss: 2.8908 - masked_acc: 0.4089

a man in a blue wetsuit is riding a wave
a man is riding the water
the man has ice crosses as something from the river is tossing a red paddling down


100/100 [==============================] - 6s 61ms/step - loss: 2.8921 - masked_acc: 0.4087 - val_loss: 2.9399 - val_masked_acc: 0.3967
Epoch 40/100
98/100 [============================>.] - ETA: 0s - loss: 2.8733 - masked_acc: 0.4074

a man in a red shirt is riding a wave
a man wearing a red hat is wearing a red and yellow kayak
a skier foot up the ocean


100/100 [==============================] - 6s 59ms/step - loss: 2.8742 - masked_acc: 0.4074 - val_loss: 2.9910 - val_masked_acc: 0.3861
Epoch 41/100
99/100 [============================>.] - ETA: 0s - loss: 2.8719 - masked_acc: 0.4092

a man in a red shirt is riding a wave
a man in a red jacket is swimming pool
a young girl coming out of a pool


100/100 [==============================] - 6s 55ms/step - loss: 2.8702 - masked_acc: 0.4096 - val_loss: 2.9517 - val_masked_acc: 0.3866
Epoch 42/100
98/100 [============================>.] - ETA: 0s - loss: 2.8321 - masked_acc: 0.4143

a man in a red shirt is surfing
a surfer is riding a wave
the white dog is wearing a black backpack over a surfboard


100/100 [==============================] - 5s 54ms/step - loss: 2.8329 - masked_acc: 0.4141 - val_loss: 2.9628 - val_masked_acc: 0.3983
Epoch 43/100
99/100 [============================>.] - ETA: 0s - loss: 2.8979 - masked_acc: 0.4040

a man in a red shirt is surfing
a man in a green kayak is being held by a wave
a child swims with the surfing her eyes and swimming through the blonde wave


100/100 [==============================] - 6s 63ms/step - loss: 2.8966 - masked_acc: 0.4043 - val_loss: 2.9127 - val_masked_acc: 0.4028
Epoch 44/100
99/100 [============================>.] - ETA: 0s - loss: 2.8550 - masked_acc: 0.4075

a man in a red shirt is surfing
a man in a yellow jacket is surfing on a wave
a man in the orange shirt is in the a wave


100/100 [==============================] - 6s 59ms/step - loss: 2.8571 - masked_acc: 0.4072 - val_loss: 2.8871 - val_masked_acc: 0.3977
Epoch 45/100
100/100 [==============================] - ETA: 0s - loss: 2.8514 - masked_acc: 0.4089

a man in a red shirt is surfing
a surfer in a blue wetsuit rides his surfboard
a surfer motorcyclist swimming in the wearing a red scarf in a wave


100/100 [==============================] - 6s 57ms/step - loss: 2.8514 - masked_acc: 0.4089 - val_loss: 2.9959 - val_masked_acc: 0.3842
Epoch 46/100
98/100 [============================>.] - ETA: 0s - loss: 2.8667 - masked_acc: 0.4052

a man in a red wetsuit is surfing
a man in a red wave on a surfboard
a man in a orange shirt hangs off by a wave


100/100 [==============================] - 6s 56ms/step - loss: 2.8627 - masked_acc: 0.4058 - val_loss: 2.8988 - val_masked_acc: 0.4000
Epoch 47/100
98/100 [============================>.] - ETA: 0s - loss: 2.8083 - masked_acc: 0.4139

a man in a red shirt is surfing
a man in a red shirt is riding a wave in the ocean
a surfer with a good in the surfer is falling the ocean


100/100 [==============================] - 6s 62ms/step - loss: 2.8040 - masked_acc: 0.4144 - val_loss: 2.9161 - val_masked_acc: 0.3982
Epoch 48/100
99/100 [============================>.] - ETA: 0s - loss: 2.7301 - masked_acc: 0.4216

a man in a yellow kayak is surfing
a man in a wetsuit is riding a wave
a man riding a surfboard on a surfboard


100/100 [==============================] - 5s 54ms/step - loss: 2.7277 - masked_acc: 0.4219 - val_loss: 2.9245 - val_masked_acc: 0.3871
Epoch 49/100
100/100 [==============================] - ETA: 0s - loss: 2.7509 - masked_acc: 0.4186

a surfer rides a wave
a surfer rides a wave on a surfboard
a girl kayaking through the green yellow water


100/100 [==============================] - 5s 53ms/step - loss: 2.7509 - masked_acc: 0.4186 - val_loss: 2.8690 - val_masked_acc: 0.4034
Epoch 50/100
98/100 [============================>.] - ETA: 0s - loss: 2.7516 - masked_acc: 0.4162

a man in a red shirt is surfing
a man wearing a red shirt is riding a wave
an man in a wetsuit wearing a red sweatshirt is waterskiing


100/100 [==============================] - 6s 57ms/step - loss: 2.7525 - masked_acc: 0.4162 - val_loss: 2.8848 - val_masked_acc: 0.3993
Epoch 51/100
100/100 [==============================] - ETA: 0s - loss: 2.7541 - masked_acc: 0.4177

a surfer in a red wetsuit is surfing
a surfer rides a wave
a surfer on a blue surfboard with a waterfall


100/100 [==============================] - 5s 52ms/step - loss: 2.7541 - masked_acc: 0.4177 - val_loss: 2.9027 - val_masked_acc: 0.3958
Epoch 52/100
98/100 [============================>.] - ETA: 0s - loss: 2.7264 - masked_acc: 0.4229

a man in a blue wetsuit is riding a wave
a surfer in a yellow surfboard and white uniform is surfing
a child is being splashed by some water


100/100 [==============================] - 6s 58ms/step - loss: 2.7242 - masked_acc: 0.4233 - val_loss: 2.9440 - val_masked_acc: 0.3978
Epoch 53/100
98/100 [============================>.] - ETA: 0s - loss: 2.7566 - masked_acc: 0.4163

a man in a red shirt and white surfboard
a man in a red shirt is riding a wave
a man in the swim trunks and surf


100/100 [==============================] - 6s 57ms/step - loss: 2.7552 - masked_acc: 0.4163 - val_loss: 2.8651 - val_masked_acc: 0.4078
Epoch 54/100
99/100 [============================>.] - ETA: 0s - loss: 2.7211 - masked_acc: 0.4200

a man in a red shirt is surfing
a man surfs on a wave
a board surfer in a wave


100/100 [==============================] - 5s 51ms/step - loss: 2.7197 - masked_acc: 0.4199 - val_loss: 2.8705 - val_masked_acc: 0.3978
Epoch 55/100
100/100 [==============================] - ETA: 0s - loss: 2.7130 - masked_acc: 0.4218

a man in a red shirt is riding a wave
a person in a red shirt is surfing
a rock with water in a yellow surfboard


100/100 [==============================] - 5s 54ms/step - loss: 2.7130 - masked_acc: 0.4218 - val_loss: 2.8755 - val_masked_acc: 0.4044
Epoch 56/100
99/100 [============================>.] - ETA: 0s - loss: 2.7235 - masked_acc: 0.4230

a man in a yellow kayak is surfing
a man in a yellow kayak is surfing
the surfer over a black cap is riding a backstroke in the background


100/100 [==============================] - 6s 56ms/step - loss: 2.7219 - masked_acc: 0.4230 - val_loss: 2.9409 - val_masked_acc: 0.3879
Epoch 57/100
99/100 [============================>.] - ETA: 0s - loss: 2.6688 - masked_acc: 0.4262

a surfer in a red wetsuit is surfing
a man wearing a red shirt in a yellow kayak on a surfboard
a yellow boat in the sun have up a jacked through the water team


100/100 [==============================] - 6s 63ms/step - loss: 2.6662 - masked_acc: 0.4264 - val_loss: 2.8804 - val_masked_acc: 0.3872
Epoch 58/100
98/100 [============================>.] - ETA: 0s - loss: 2.6351 - masked_acc: 0.4320

a man in a red shirt is surfing
a man in a blue white is surfing
a man rides a wave


100/100 [==============================] - 5s 50ms/step - loss: 2.6355 - masked_acc: 0.4321 - val_loss: 2.9116 - val_masked_acc: 0.3933

Plot the loss and accuracy over the training run:

plt.plot(history.history['loss'], label='loss')
plt.plot(history.history['val_loss'], label='val_loss')
plt.ylim([0, max(plt.ylim())])
plt.xlabel('Epoch #')
plt.ylabel('CE/token')
plt.legend()

<matplotlib.legend.Legend at 0x7fd0de72c3d0>

png

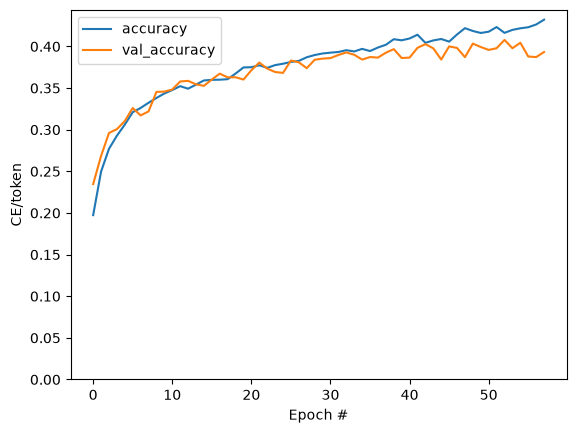

plt.plot(history.history['masked_acc'], label='accuracy')
plt.plot(history.history['val_masked_acc'], label='val_accuracy')
plt.ylim([0, max(plt.ylim())])
plt.xlabel('Epoch #')
plt.ylabel('CE/token')
plt.legend()

<matplotlib.legend.Legend at 0x7fd0df317510>

png

Attention plots

Now, using the trained model, run that simple_gen method on the image:

result = model.simple_gen(image, temperature=0.0)
result

'a man in a red shirt and white surfboard'

Split the output back into tokens:

str_tokens = result.split()
str_tokens.append('[END]')

The DecoderLayers each cache the attention scores for their CrossAttention layer. The shape of each attention map is (batch=1, heads, sequence, image):

attn_maps = [layer.last_attention_scores for layer in model.decoder_layers]
[map.shape for map in attn_maps]

[TensorShape([1, 2, 10, 49]), TensorShape([1, 2, 10, 49])]

So stack the maps along the batch axis, then average over the (batch, heads) axes, while splitting the image axis back into height, width:

attention_maps = tf.concat(attn_maps, axis=0)
attention_maps = einops.reduce(
    attention_maps,
    'batch heads sequence (height width) -> sequence height width',
    height=7, width=7,
    reduction='mean')

Now you have a single attention map, for each sequence prediction. The values in each map should sum to 1.

einops.reduce(attention_maps, 'sequence height width -> sequence', reduction='sum')

<tf.Tensor: shape=(10,), dtype=float32, numpy=
array([0.99999994, 0.99999994, 1.        , 1.        , 1.        ,

       1.        , 0.99999994, 0.99999994, 1.        , 0.99999994],
      dtype=float32)>

So here is where the model was focusing attention while generating each token of the output:

def plot_attention_maps(image, str_tokens, attention_map):
    fig = plt.figure(figsize=(16, 9))

    len_result = len(str_tokens)

    titles = []
    for i in range(len_result):
      map = attention_map[i]
      grid_size = max(int(np.ceil(len_result/2)), 2)
      ax = fig.add_subplot(3, grid_size, i+1)
      titles.append(ax.set_title(str_tokens[i]))
      img = ax.imshow(image)
      ax.imshow(map, cmap='gray', alpha=0.6, extent=img.get_extent(),
                clim=[0.0, np.max(map)])

    plt.tight_layout()

plot_attention_maps(image/255, str_tokens, attention_maps)

png

Now put that together into a more usable function:

@Captioner.add_method
def run_and_show_attention(self, image, temperature=0.0):
  result_txt = self.simple_gen(image, temperature)
  str_tokens = result_txt.split()
  str_tokens.append('[END]')

  attention_maps = [layer.last_attention_scores for layer in self.decoder_layers]
  attention_maps = tf.concat(attention_maps, axis=0)
  attention_maps = einops.reduce(
      attention_maps,
      'batch heads sequence (height width) -> sequence height width',
      height=7, width=7,
      reduction='mean')

  plot_attention_maps(image/255, str_tokens, attention_maps)
  t = plt.suptitle(result_txt)
  t.set_y(1.05)

run_and_show_attention(model, image)

png

Try it on your own images

For fun, below you're provided a method you can use to caption your own images with the model you've just trained. Keep in mind, it was trained on a relatively small amount of data, and your images may be different from the training data (so be prepared for strange results!)

image_url = 'https://tensorflow.org/images/bedroom_hrnet_tutorial.jpg'
image_path = tf.keras.utils.get_file(origin=image_url)
image = load_image(image_path)

run_and_show_attention(model, image)

Downloading data from https://tensorflow.org/images/bedroom_hrnet_tutorial.jpg
67460/67460 [==============================] - 0s 0us/step

png
